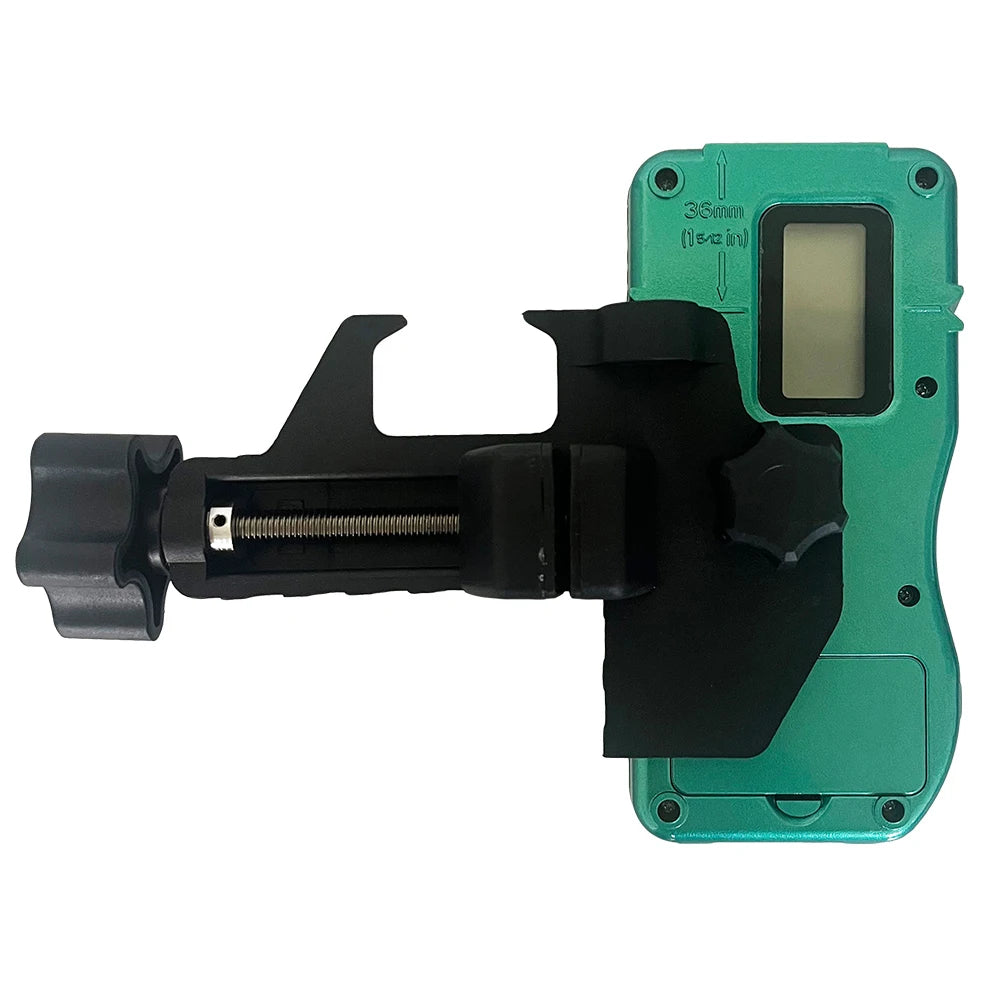

HEIPOE Receiver of Self-leveling Rotary Laser Level / Ourdoor Rotating laser Level Detector with Heavy-duty clamp

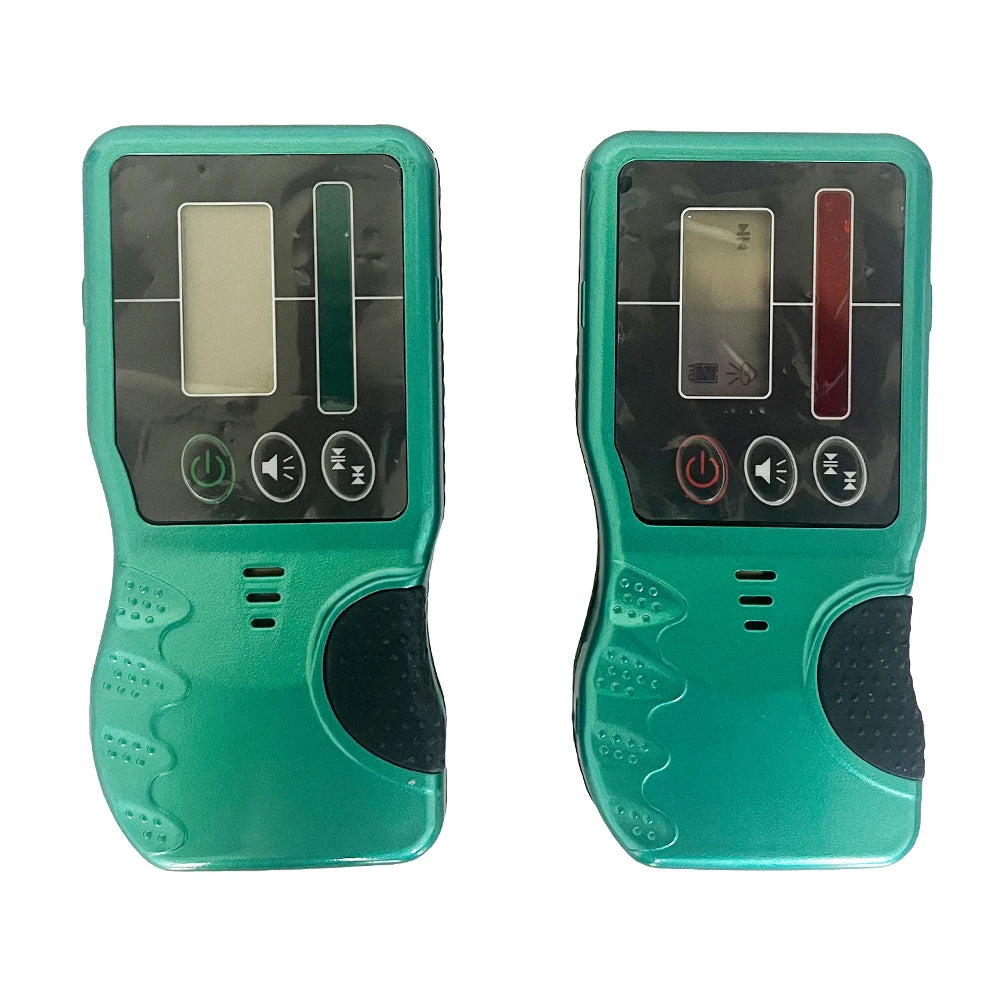

For red beam
$131.99
Skip to product information

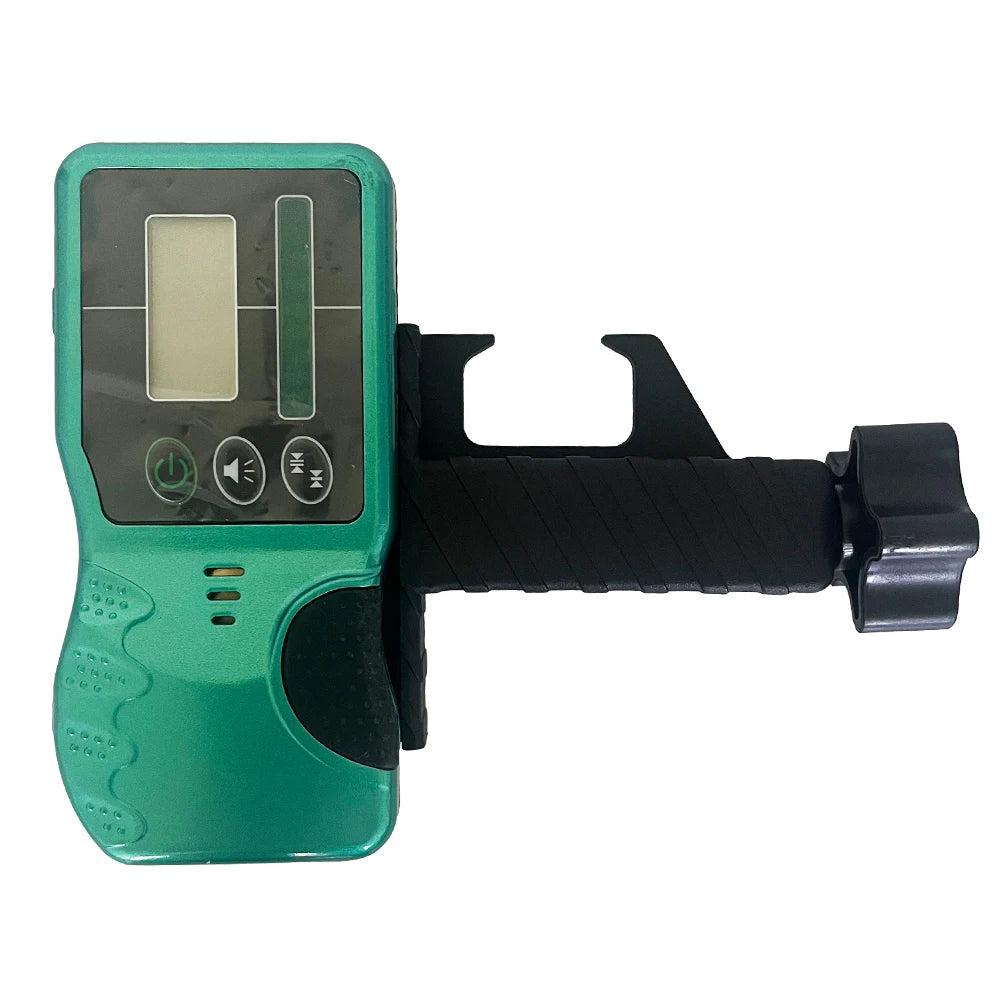

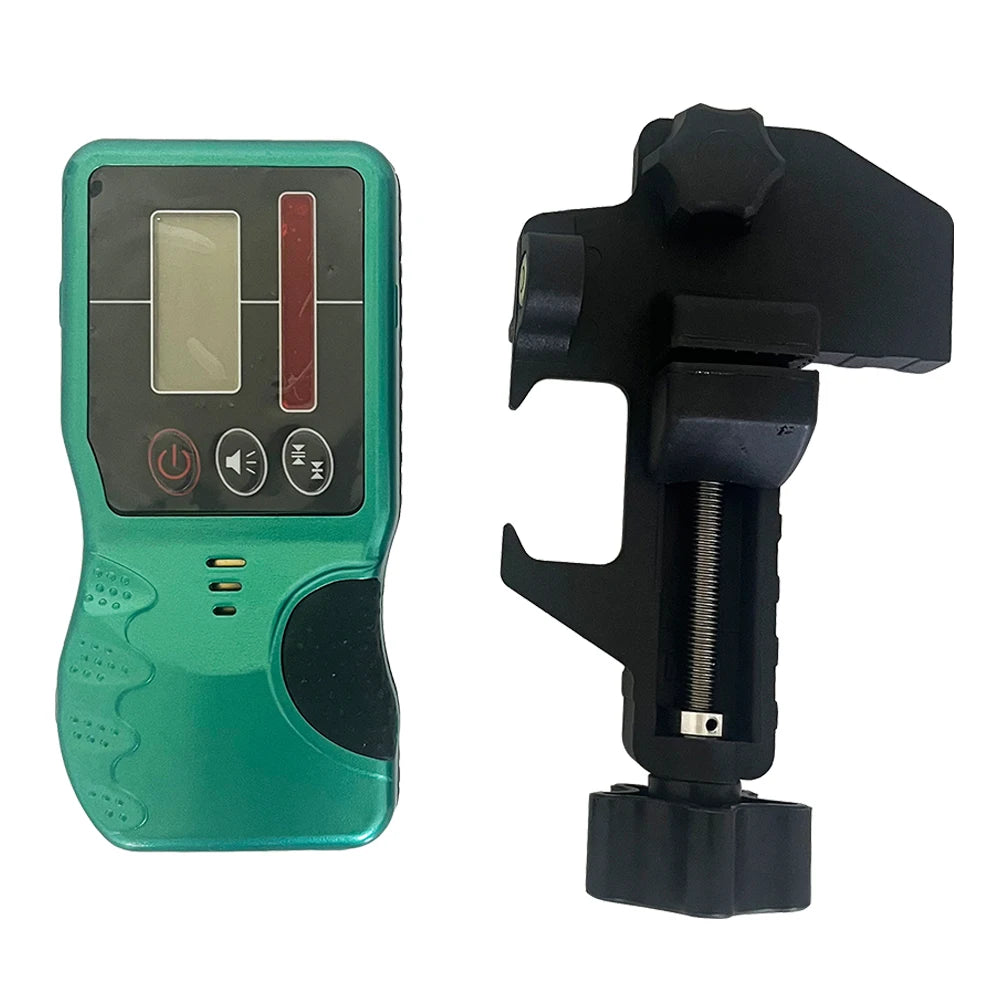

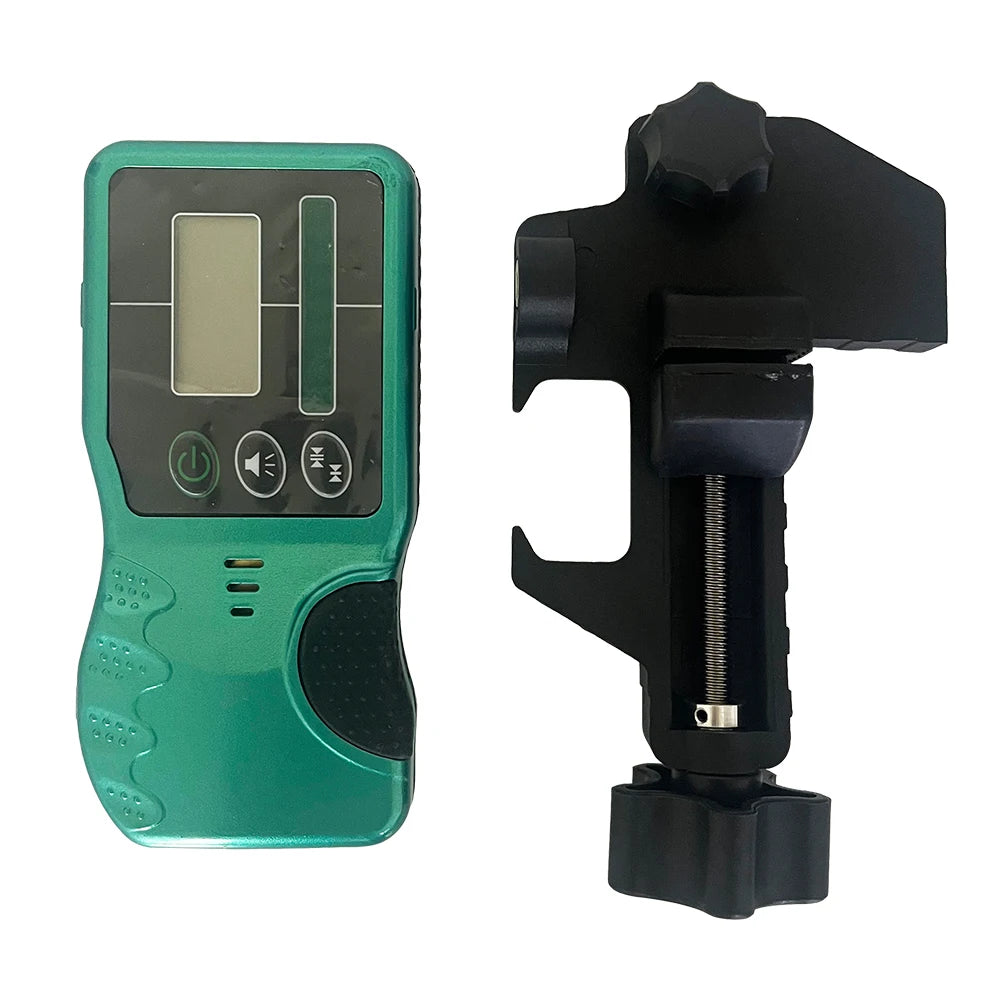

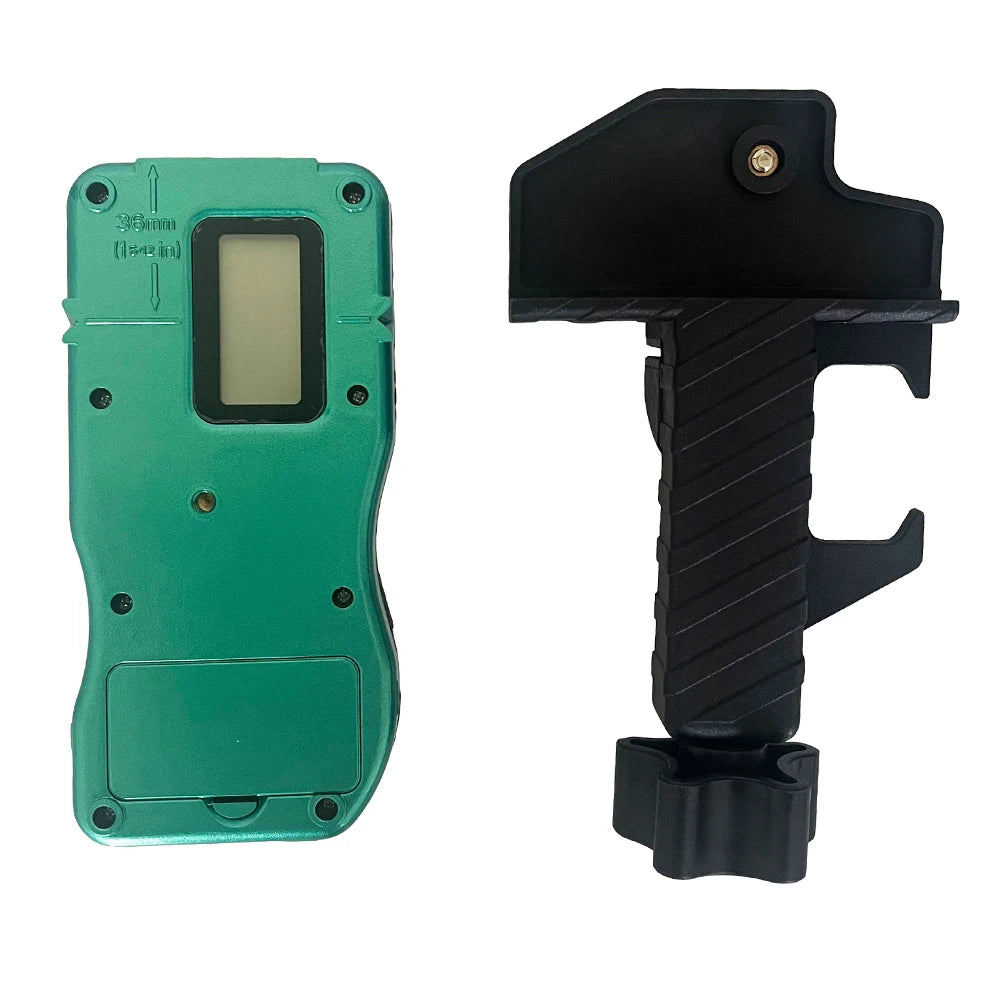

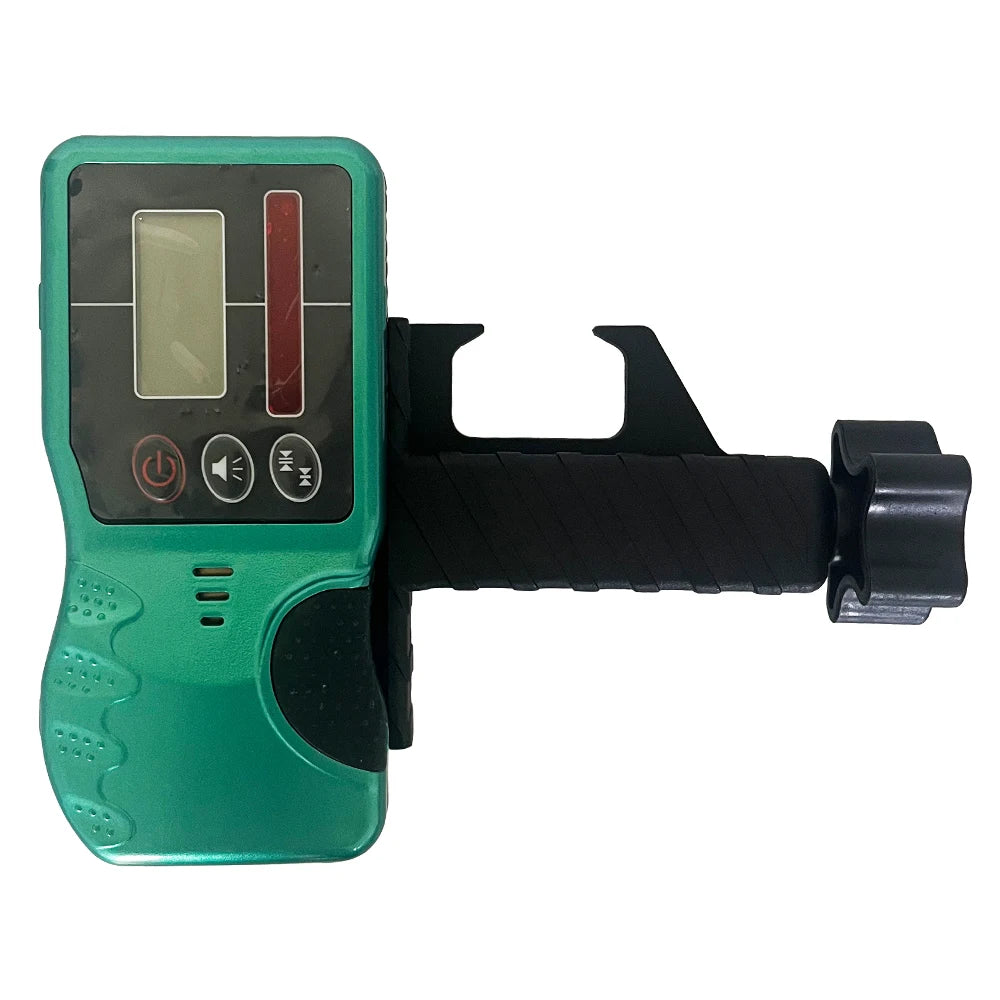

HEIPOE Receiver of Self-leveling Rotary Laser Level / Ourdoor Rotating laser Level Detector with Heavy-duty clamp
$131.99
Working range |
300m |
Power supply |
1*9V |
Continuous working hrs |
20hours |
Working temperature |
-10℃-45℃ |
Waterproof and dustproof |
IP 54 |
Dimension |
173(L) X 90(W)X70(H)mm |
Note: This product is only for Rotary Laser Level
red beam:600-660nm
green beam:500-540nm
The product is suitable for Rotary Laser Level in our shop, fukuda, deko, etc. Please consult for details

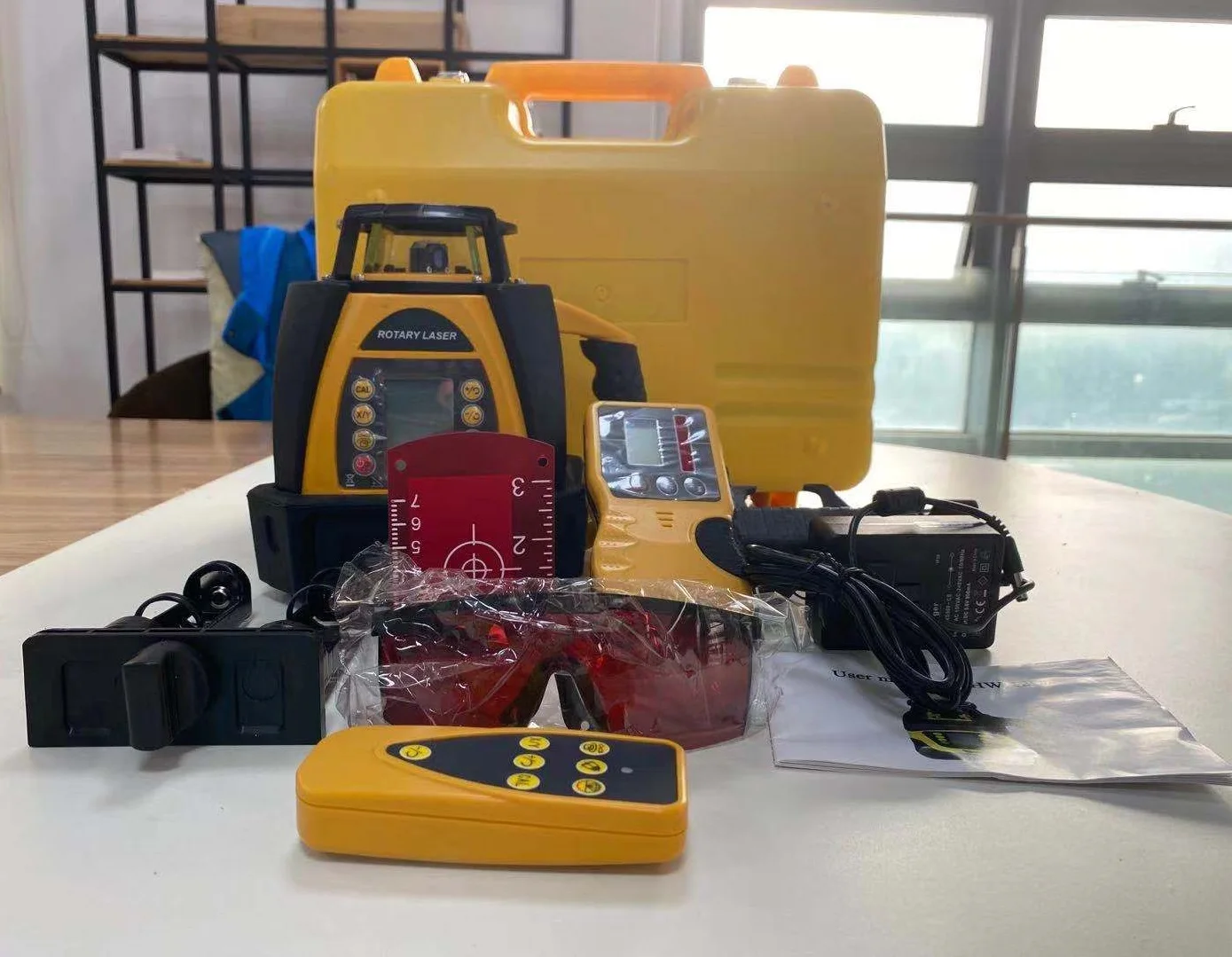

The rotary level is a product such as the one shown in the figure below, which is only for display purposes and is not included in the product
|
The Detector will pick up a spinning beam when it crosses the electronic sensor window.
The detector has 3 buttons:
a) On/Off button.
b) A Sound button.
c) A sensitivity button.
This will either give a narrow or a broader range of detection.When the detector is too high a slower beep will be emitted,
when too low, a fast beep will be emitted, when same level as beam a continuous pitch will sound- at this point the centre
of the detector is at the same alignment as the beam.
To get accurate results use the spirit bubble to keep the detector level.
The detector is powered by a standard 9v battery.
